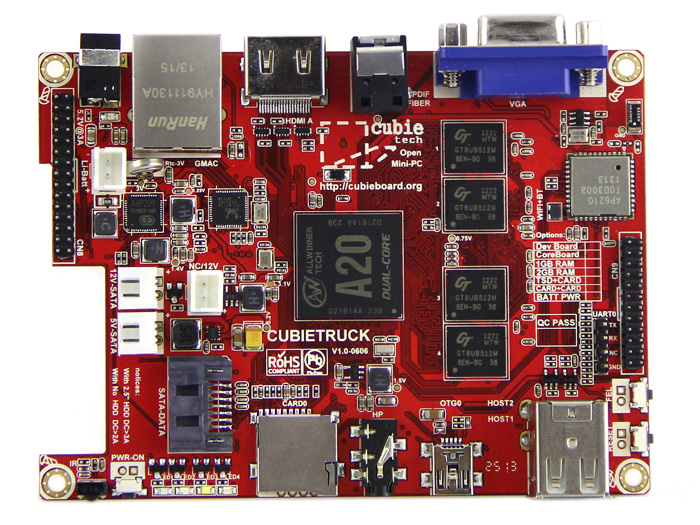

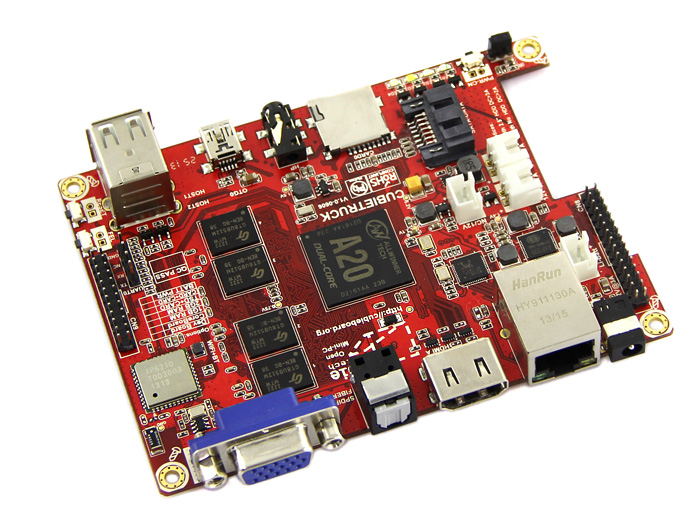

Cubietruck A20

• AllWinnerTech SOC A20, ARM® Cortex™-A7 Dual-Core, ARM® Mali400 MP2 Complies with OpenGL ES 2.0/1.1
• 1GB/2GB DDR3@480MHz (960MTPS)
• HDMI&VGA 1080P display output on-board
• 10M/100M/1G Ethernet
• Wifi+BT wireless connection with antenna on-board
• SATA 2.0 interface support 2.5' HDD, (for 3.5' HDD, only need another 12V power input)
• Storage solution: NAND+MicroSD or TSD+ MicroSD or 2*MicroSD
• 2 x USB HOST, 1 x OTG, 1 x Toslink (SPDIF Optical), 1 x IR, 4 x LEDs, 1 Headphone, 3 x Keys
• Power: DC5V @ 2.5A with HDD, support Li-battery & RTC
• 54 extended pins including I2S, I2C, SPI, CVBS, LRADC x2,UART, PS2, PWMx2, TS/CSI, IRDA, LINEIN&FMIN&MICIN, TVINx4 with 2.0 pitch connectors
• PCB size: 11cm *8cm*1.4mm, very suite for installing a 2.5' HDD
